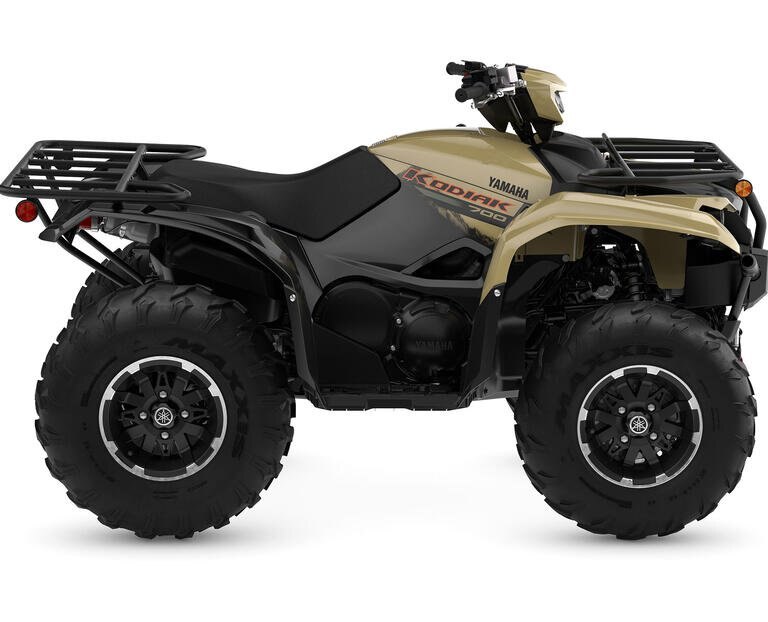

2027 Yamaha Kodiak 700 EPS XT-R Fall Beige/Yamaha Black

  • 2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha Black
  • 2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha Black
  • 2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha Black
  • 2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha Black
  • 2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha Black
  • 2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha Black

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
WORK HARD, PLAY HARDER. This XT-R Edition pairs eye-catching graphics and aluminum wheels with class-leading XT-R capability for both hard work and fun on the trails.
Specifications
Model
Kodiak
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Yamaha
Color
Fall Beige/Yamaha Black
engine
Engine
Liquid-cooled, SOHC 4-stroke
Ignition
TCI
Starting
Electric
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
Lubrication
Wet sump
Displacement
686cc
Transmission
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Fuel Delivery
Yamaha Fuel Injection (YFI), 44 mm
Bore And Stroke
102 mm x 84 mm
Compression Ratio
10 : 1
chassis
Tires (Rear)
Maxxis MU20, AT25 x 10-12
Brakes (Rear)
Multi-Disc wet brake
Tires (Front)
Maxxis MU19, AT25 x 8-12
Brakes (Front)
Dual hydraulic disc
Suspension (Rear)
Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel
Suspension (Front)
Independent double wishbone; 5-way preload adjustment / 180 mm (7.1") of wheel travel
highlights

2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha BlackXT-R Edition Features

The Kodiak 700 EPS XT-R takes rugged terrain capability even further with a factory-installed WARN® VRX 25 winch and exclusive XT-R graphics for a purpose-built look to match its exceptional performance.

2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha BlackHigh-Performance Ultramatic Transmission

Yamaha's class-leading Ultramatic transmission is proven to be the most durable CVT on the market, pairing immediate response with advanced features like natural, all-wheel engine braking for smooth, consistent handling and confidence. Yamaha's Ultramatic CVT is backed by an industry-exclusive 10-Year Belt Warranty.​

2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha BlackYamaha's Exclusive On-Command 4WD

 Yamaha's On-Command system keeps the rider in control with selectable 2WD, limited-slip 4WD, and a fully-locked differential 4WD to deliver predictable and consistent power and handling on rugged terrain.

2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha BlackBig-Bore Engine Built to Tackle the Real World

The Kodiak 700 EPS XT-R delivers Yamaha's renowned riding excitement without sacrificing rider comfort. Its potent 686cc engine is optimized for low-rpm cruising and smooth, quiet operation, while enhanced midrange output puts impressive big-bore power right where you need it.

2027 Yamaha Kodiak 700 EPS XT R Fall Beige/Yamaha BlackClass-Leading Power Steering

The Kodiak 700 EPS XT-R's best-in-industry speed-sensitive Electric Power Steering (EPS) reduces fatigue and delivers excellent control and feel whether hard at work or while having fun on the trail.
key features
  • Powerful 686cc engine
  • Speed-sensitive electric power steering (EPS)
  • On-Command® four-wheel drive system
  • High Performance Ultramatic® Transmission
  • Wide-arc A-arms
  • Full-length composite skid plates
  • 2,500 lb Warn® VRX winch
  • 12-inch aluminum wheels wrapped in 25-inch Maxxis® tires
  • High-quality painted bodywork
critical data
Width
1180 mm (46.5")
Height
1240 mm (48.8")
Length
2070 mm (81.5")
Warranty
One year (unlimited mileage) / 10 Year Belt Warranty
Wheelbase
1250 mm (49.2")
Wet Weight
311 kg (686 lb) 324 kg (714 lb) Winch model
Seat Height
860 mm (33.9")
Turn Radius
3200 mm (126")
Tread (Rear)
915 mm (36")
Fuel Capacity
18 L
Tread (Front)
940 mm (37")
Towing Capacity
600 kg (1,322 lb)
Rack Capacity (Rear)
90 kg (198 lb)
Rack Capacity (Front)
50 kg (110 lb)
Maximum Ground Clearance
274 mm (10.8")
features & benefits

ENGINE

  • Big Bore Engine Built to Tackle the Real World
    • 700-class engine with improved midrange performance and optimized torque right where you use it most
    • Gearing designed for low rpm cruising and smooth running motor mounts to create excitement on the trails while still being quiet and potent for the job site
  • High-Performance Ultramatic® Transmission
    • Features gated shifter, dual-range (Hi/Lo) drive plus reverse gear
    • Most advanced and durable CVT system available
    • Automatic centrifugal clutch maintains constant belt tension for reduced belt wear
    • Sprag clutch delivers natural all-wheel engine braking for control and confidence
  • Selectable On-Command® 4WD
    • 4WD system lets you switch between 2WD, 4WD limited-slip and 4WD with diff lock
    • Diff lock initiated by a simple push of a button, giving the rider direct control over available traction
  • Stainless Steel Exhaust
    • Maintains clean-running performance
    • Features screen-type spark arrestor for great power with minimum noise output
  • Drive System Air Intake
    • Specially designed, high-mounted drive system air intake
    • Helps reduce drive system temperatures and assists in keeping water and debris from entering the drive case
    • Increases power and torque while providing additional room for on-board storage
  • High-Capacity Radiator
    • Efficient high-capacity radiator with fan assist that delivers plenty of air flow for maximum cooling efficiency
    • Positioned high in the frame for optimal protection

Chassis

  • Trail-Ready Chassis
    • With plenty of ground clearance and adjustable suspension, the Kodiak tackles rough terrain with ease.
    • Wide-arc A-arms and full-body skid plates ensure the Kodiak is able to handle anything the farm or trail can throw at it
  • High-Performance Tires
    • To maximize available traction, the Kodiak features 25-inch Maxxis® tires
    • Provide precise steering feel and feedback
  • Class-Leading Power Steering
    • Reduced fatigue, excellent control and trail feel all come standard with Kodiak's best in industry, speed-sensitive Electric Power Steering (EPS)
  • Independent Double Wishbone Front and Rear Suspension
    • 7.6 inches of front wheel travel / 9.1 inches of rear wheel travel
    • Provides excellent rider comfort even on the toughest trails
    • Nitrogen-charged shocks with 5-way adjustable preload
  • Aggressive and Durable Styling
    • Rugged composite front bumper resists scratching and rust
    • Injection-molded fenders and CV joint guards protect again rock and debris
  • Compact Ergonomics
    • A plush seat improves rider comfort for extended days exploring
    • Plenty of room for the rider to move during aggressive riding
    • Despite full size performance, Kodiak features a more compact body design similar to mid-sized ATV for overall ease in handling
  • Extensive Cargo Capacity
    • Rugged, large-diameter steel cargo racks with durable wrinkle paint finish
    • 308 pounds of total carrying capacity
    • On-board storage compartment keeps things try
  • Work-Ready Tow Capacity
    • Center-mounted, heavy-duty 2 inch receiver
    • Tow up to 600 kg (1322 lb)
  • Generous Ground Clearance
    • Offers impressive 10.8 inches of maximum ground clearance
    • Full-length composite skid plate for underbelly protection

Design

  • Ready for Accessories
    • Engineered in concert with a range of accessories for perfect fit and function
    • Standard 12V power point to keep devices charged.
