ID # 68126922

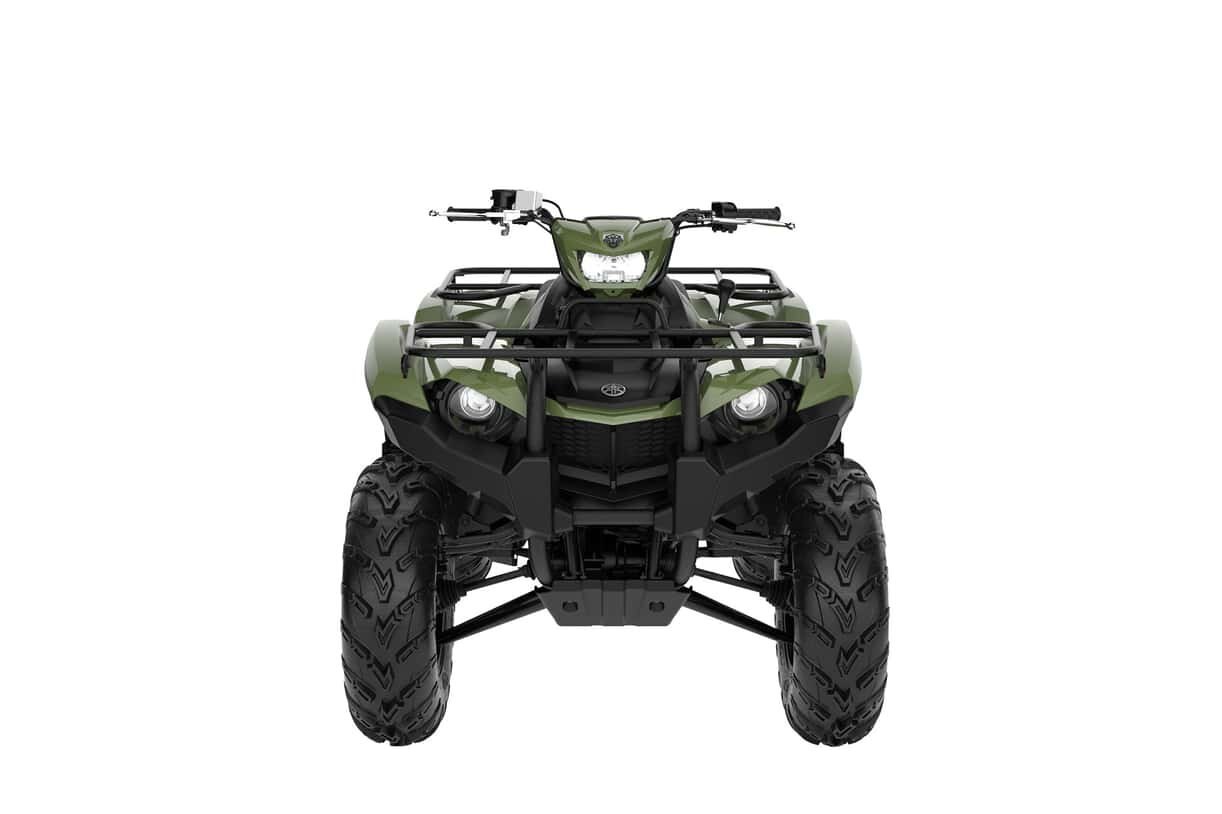

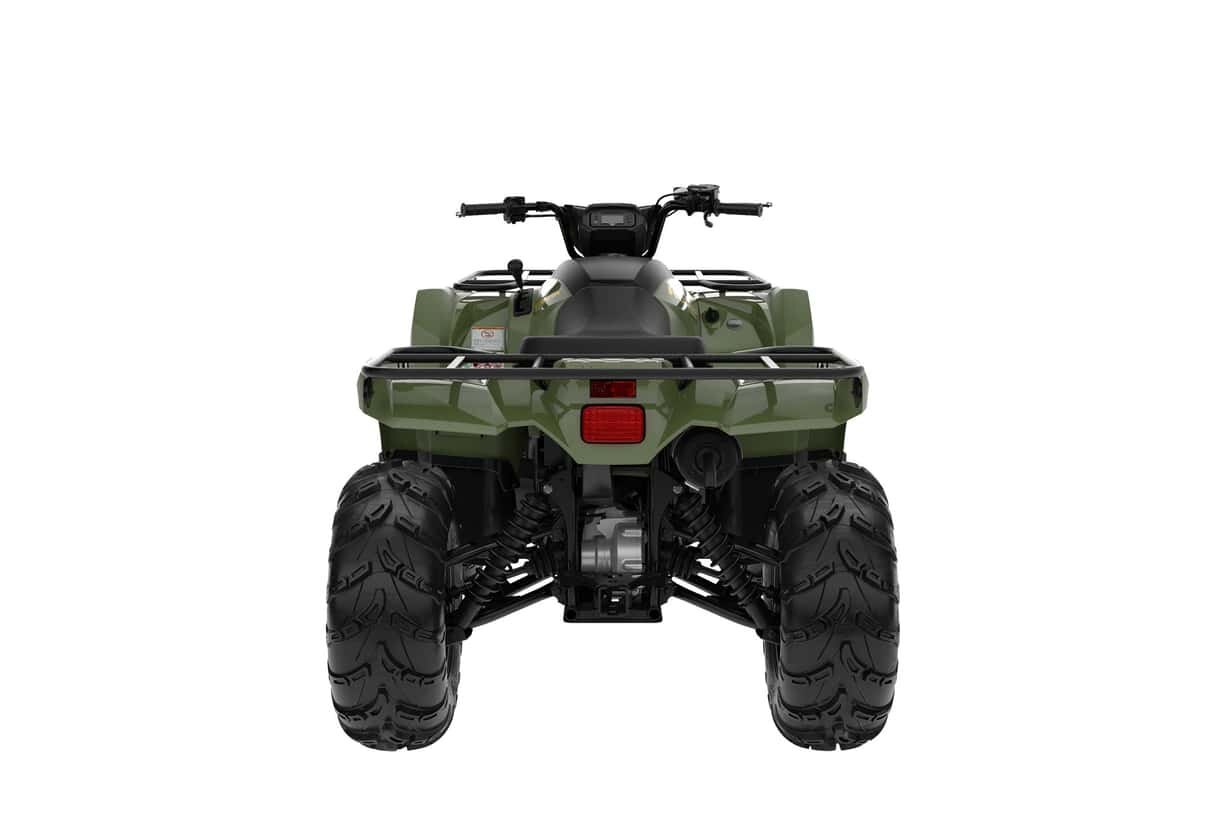

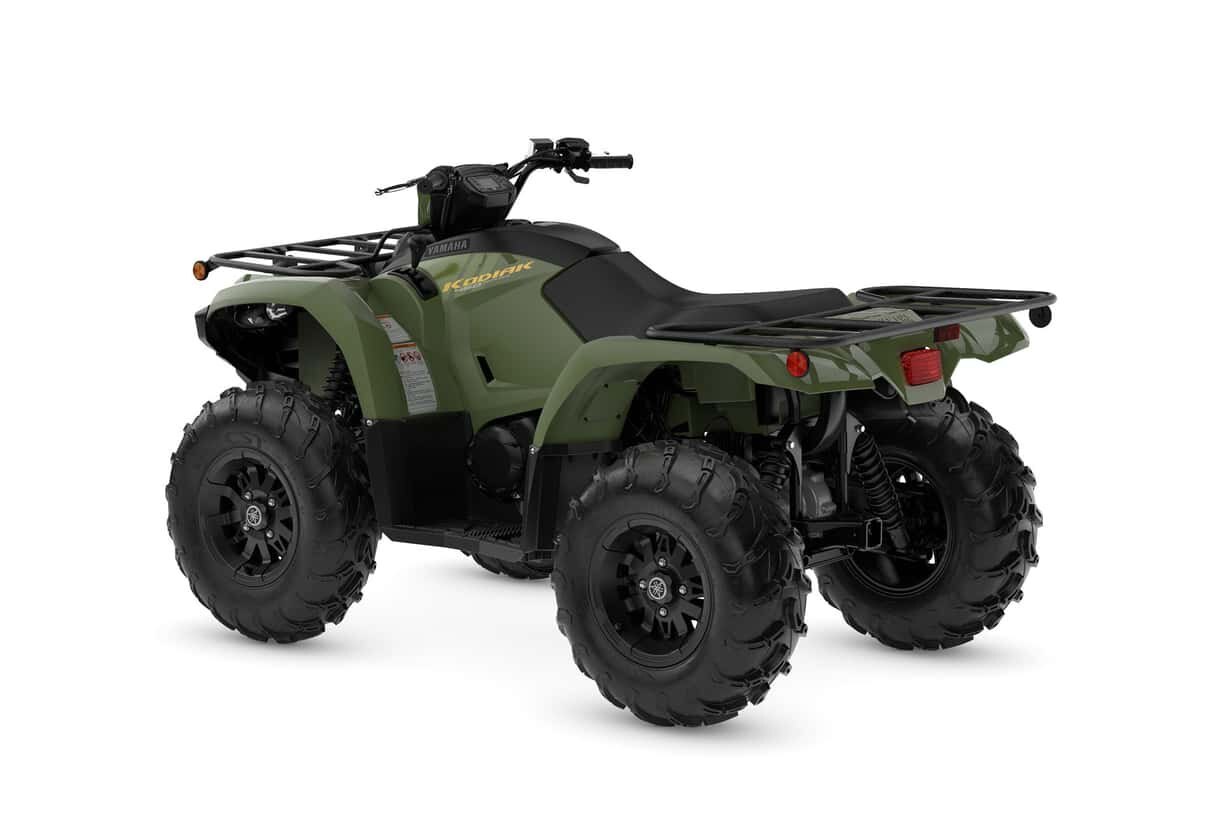

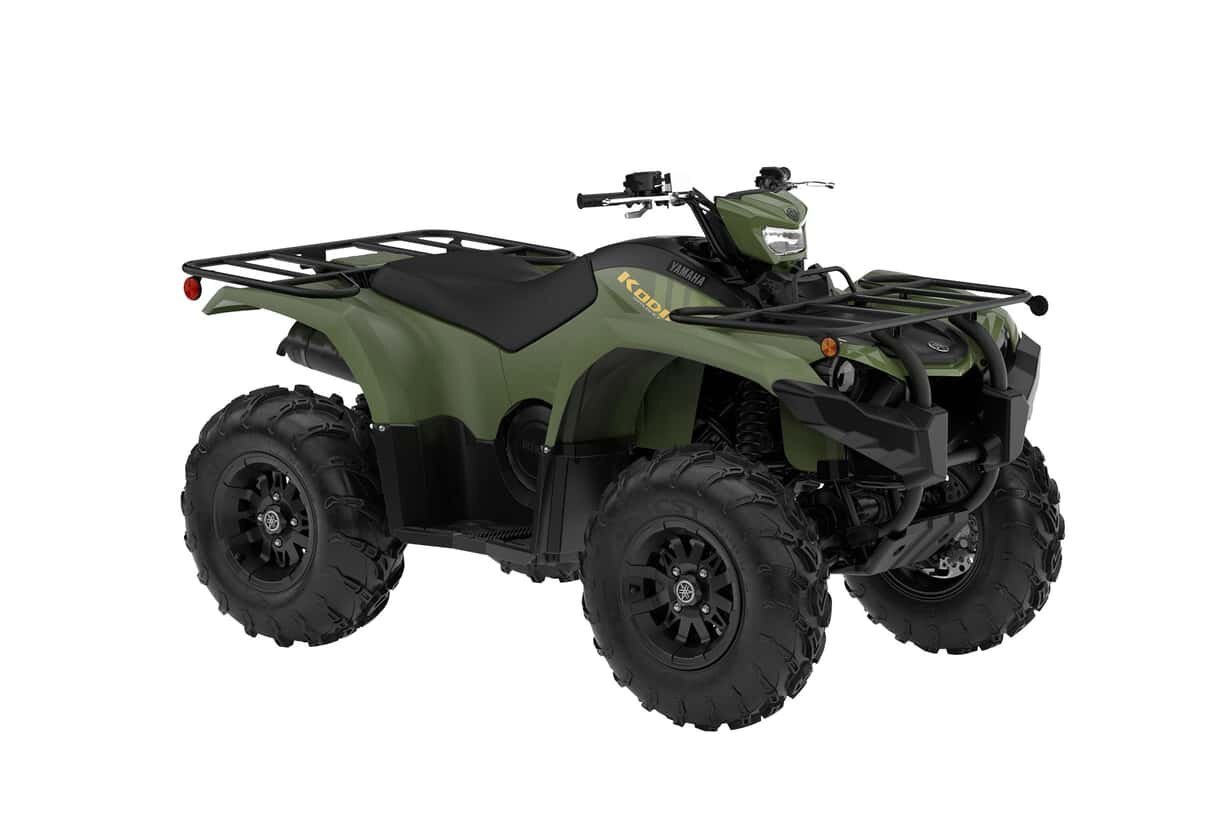

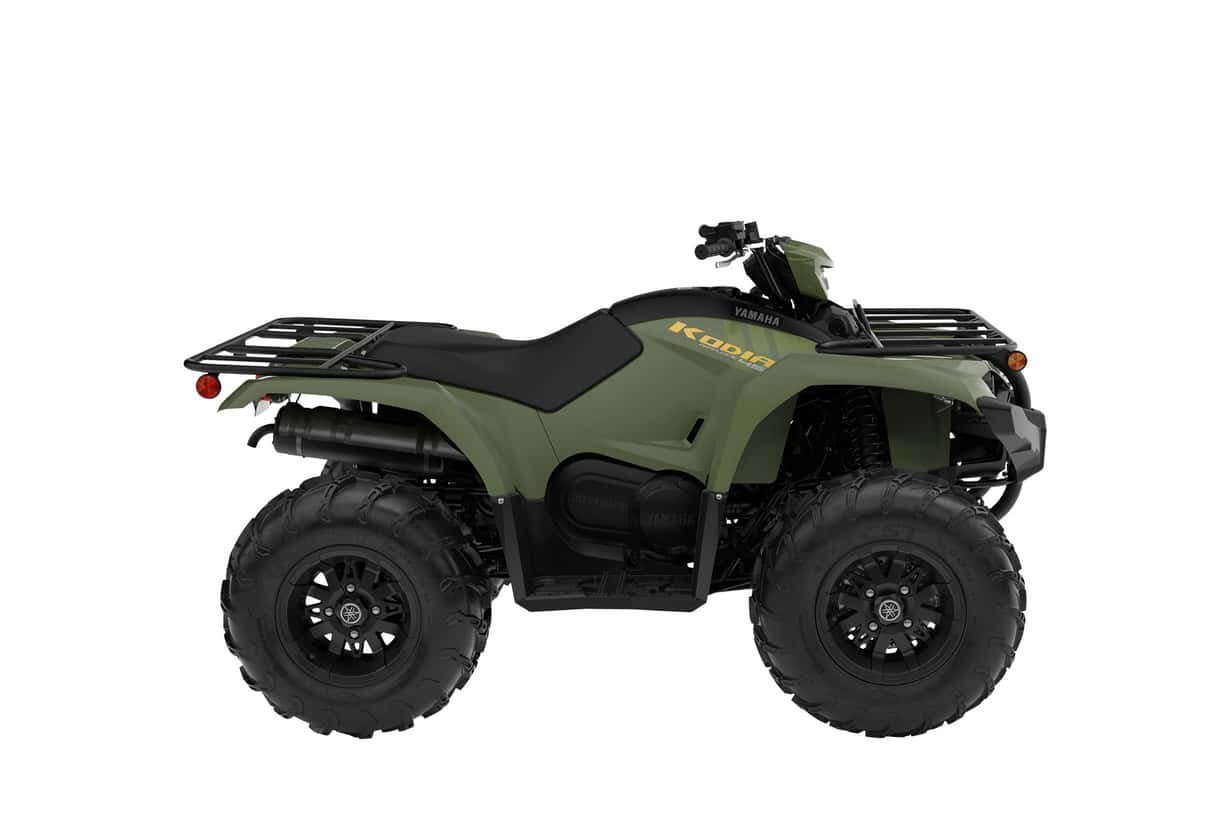

2027 Yamaha Kodiak 450 EPS Tactical Green

  • 2027 Yamaha Kodiak 450 EPS Tactical Green
  • 2027 Yamaha Kodiak 450 EPS Tactical Green
  • 2027 Yamaha Kodiak 450 EPS Tactical Green
  • 2027 Yamaha Kodiak 450 EPS Tactical Green
  • 2027 Yamaha Kodiak 450 EPS Tactical Green
In Stock

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
CONFIDENCE ON EVERY TRAIL. Proven Off-Road capability, comfort, and confidence packed into the best-performing mid-size ATV available.
Specifications
Model
Kodiak
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Yamaha
Color
Tactical Green
engine
Engine
Liquid-cooled, SOHC 4-stroke, 2-valves
Ignition
TCI
Starting
Electric
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD
Lubrication
Wet sump
Displacement
421 cc
Transmission
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Fuel Delivery
Yamaha Fuel Injection (YFI), 34 mm
Bore And Stroke
84.5 mm x 75 mm
Compression Ratio
10 : 1
chassis
Tires (Rear)
AT25 x 10-12
Brakes (Rear)
Multi-Disc wet brake
Tires (Front)
AT25 x 8-12
Brakes (Front)
Dual hydraulic disc
Suspension (Rear)
Independent double wishbone / 189 mm (7.4") of wheel travel
Suspension (Front)
Independent double wishbone / 171 mm (6.7") of wheel travel
highlights

2027 Yamaha Kodiak 450 EPS Tactical GreenUltramatic & On-Command

The Kodiak 450 EPS brings Yamaha's renowned Ultramatic transmission, the industry's most durable automatic CVT, together with the rider-focused control of On-Command selectable 4WD. The result is outstanding capability and confidence-inspiring handling to traverse challenging terrain. Yamaha's Ultramatic CVT is backed by an industry-exclusive 10-Year Belt Warranty.

2027 Yamaha Kodiak 450 EPS Tactical GreenTerrainability

With full-length skid plates standard, nearly 10 inches of ground clearance and independent double wishbone suspension with adjustable shocks, the Kodiak 450 EPS is built to handle tough terrain without hesitation and delivers the rider comfort needed for long days on the trail.

2027 Yamaha Kodiak 450 EPS Tactical GreenCompact Chassis

Unlike many middleweight utility ATVs, the Kodiak 450 EPS' chassis was specifically engineered for precise handling and superior maneuverability on the trail, rather than simply fitting a smaller engine into a full-size body.

2027 Yamaha Kodiak 450 EPS Tactical GreenRoomy Ergonomics

The ergonomics on the Kodiak 450 EPS were designed to accommodate a wide variety of riders. A long, plush seat and wide floorboards give riders room to move, while the handlebar bend is shaped for various heights, maximizing comfort in nearly every riding position.

2027 Yamaha Kodiak 450 EPS Tactical GreenReal World Tough

The Kodiak 450 EPS is built with Yamaha's Proven Off-Road approach to durability and serviceability, featuring a toolless air filter design, steel skid plates with accessible oil drain ports, high-mounted air intakes, and marine-grade electrical connectors throughout.
key features
  • Torquey 421cc engine
  • Electric power steering (EPS)
  • On-Command® four-wheel drive system
  • Ultramatic® Transmission
  • Compact chassis
  • Full-length composite skid plates
  • 12-inch aluminum wheels wrapped in 25-inch Maxxis® tires
critical data
Width
1180 mm (46.5")
Height
1160 mm (45.7")
Length
2035 mm (80.1")
Warranty
One year (unlimited mileage) / 10 Year Belt Warranty
Wheelbase
1240 mm (48.8")
Wet Weight
295 kg (650.4 lb)
Seat Height
855 mm (33.7")
Turn Radius
3.2 m (126")
Tread (Rear)
935 mm (36.8")
Fuel Capacity
16.8 L (3.7 Imp. Gal)
Tread (Front)
930 mm (36.6")
Towing Capacity
600 kg (1,322 lb)
Rack Capacity (Rear)
80 kg (176 lb)
Rack Capacity (Front)
40 kg (88 lb)
Maximum Ground Clearance
245 mm (9.6")
features & benefits

ENGINE

  • 421 cc, liquid-cooled, SOHC, 2-valve, fuel injected, single
    • Proven design with an excellent reliability record
    • Engine uses regular unleaded fuel
    • Rubber engine mounts reduce vibration & noise for excellent rider comfort
  • Electric starting
    • Includes auto decompression system for fast, easy starts
  • SOHC, 2-valve cylinder head design
    • Simple 2- valve design (1-intake & 1-exhaust)
    • 40 mm intake & 34 mm exhaust valves
    • Rocker arm valve actuation... simple, proven design that is easy to adjust
  • Aluminum cylinder body with cast iron liner
    • Cylinder can be over bored in the event of an issue (2 sizes of overbore available)
  • Short skirt forged aluminum piston
    • Lightweight design means faster throttle response & less mechanical vibration
  • Gear driven engine balancer shaft
    • Reduces engine vibration for improved rider comfort
  • 34 mm Mikuni throttle body fuel injection system with TPS & ISC
    • TPS (Throttle Position Sensor) is used to more precisely calculate the fuel injection quantity for optimum power, excellent throttle response & reduced fuel consumption
    • ISC (Idle Speed Control) helps ensure a steady idle even during warm up
    • Other fuel injection benefits include; choke-free starting, excellent fuel economy & reduced emissions
  • Throttle limiter
    • Easy to adjust, screw-type throttle limiter
    • Throttle limiter reduces acceleration & top speed if desired
  • High mounted, high capacity air box with washable foam air filter
    • No tools required to access air filter
    • Washable foam filter can be re-used reducing tune-up costs
    • High mounted design helps prevent water ingestion
    • Air box features a "no tools required" drain
  • Yamaha's industry leading Ultramatic® CVT (fully automatic) dual range transmission with reverse & downhill engine braking
    • Dual range, high - low transmission with reverse. Low range offers more "grunt" for towing or hauling heavy loads or when tackling technical terrain
    • CVT automatically selects the optimum transmission ratio, meaning you are always in the right "gear"
    • Ultramatic® design offers controllable, confidence inspiring downhill engine braking
    • Downhill engine braking also reduces brake wear & related servicing
    • Ultramatic® design utilizes a special centrifugal clutch which keeps constant tension on the V-belt, reducing belt wear since the belt does not slip as the clutches engage
    • High mounted belt cooling ducts help prevent water ingestion
    • V-belt housing has an easy access "no tools required" drain plug
    • Automotive style, gated, 5-postion shifter (high, low, neutral, reverse & park)
  • Convenient, handlebar mounted push button On-Command® 2WD - 4WD drive selector
    • 2WD, 4WD limited-slip and 4WD with diff lock
    • On-Command® system lets you select the best mode for the conditions ... not the machine
  • Straight design front & rear drive shafts
    • Straight driveshaft layout eliminates U-joints, reducing friction, noise & vibration
    • Front & rear CV drive shafts feature heavy duty plastic boots to protect the CV joints from mud & water penetration for extended service life
  • High capacity cooling system with electric cooling fan
    • 53% more cooling capacity than the last generation Kodiak 450
    • Maintains consistent engine temperatures for optimum performance
    • Radiator is positioned high in the frame for protection
    • Design reduces heat reaching the rider
  • Wet sump lubrication system
    • Spin on type oil filter for fast, easy oil changes
    • Oil drain plug access hole in skid plate
  • Maintenance-free transistor controlled TCI ignition
    • Produces a strong spark for fast starts
    • Provides precise ignition timing / mapping for optimum engine performance at all rpms
  • Marine style, waterproof connectors on key electrical components.
  • Stainless steel exhaust system with catalyzer & cleanable spark arrestor
    • Spark arrestor prevents stray sparks from exiting the exhaust
    • Catalyzer reduces exhaust emissions
    • Stainless steel design helps prevent rusting
  • Air Injection System (AIS) injects fresh air into exhaust port to fully burn any unburnt fuel, reducing exhaust emissions

Chassis

  • Rugged tube type, steel frame
    • Compact design provides nimble, responsive handling
    • Low seat height (855 mm / 33.7 inches) reduces centre of gravity & improves rider confidence / security
    • Revised riding position (vs. last generation 450) offers a roomier cockpit, with more knee & foot room for improved rider comfort
  • Full length, rugged plastic skid plates
    • Underside of unit is fully protected by high impact skid plates
    • Front differential & engine oil drain access holes in main skid plate
    • Skid plates enhance terrainability by allowing unit to slide more easily over obstacles
  • Electric Power Steering (EPS)
    • Significantly reduces steering effort resulting in less rider fatigue & improved rider comfort & confidence
    • Speed sensitive system; more assist at slower speeds, less assist at higher speeds for optimum control
    • Significantly reduces handlebar kickback when front wheels strike an obstacle
    • Fully sealed system (electrics & gears)
  • Double wishbone front & rear steel A-arms
    • Wide track A-arms (front & rear) improve rider confidence by reducing body roll
    • Rear anti-sway bar for optimum handling & reduced body roll
  • Adjustable independent double wishbone front & rear suspension
    • 5-position pre-load adjustable, gas charged shocks front & rear
    • 171 mm (6.7 inches) front wheel travel & 189 mm (7.4 inches) rear wheel travel
    • Excellent rider comfort even on the toughest trails
  • 245 mm (9.6") of ground clearance
  • Front disc brakes.
    • Independent (separate) front & rear braking for enhanced control & terrain-ability
    • Dual 220 mm (8.7") front rotors squeezed by single piston Nissin calipers
  • Sealed, rear wet brake
    • Single rear wet brake is fully enclosed in the rear gear case housing
    • Enclosed design keeps mud & water from entering the system & causing premature wear
    • Consistent braking performance
    • Reduced maintenance
  • Rugged CST tires & either steel wheels or cast aluminum mag wheels (depending on model)
    • 25" tires help to increase ground clearance
    • Tire design enhances steering precision, ride comfort & tradition
  • 14 litre fuel tank
    • Bar / block style fuel gauge in LCD meter
    • Last bar will begin blinking when fuel level is 4.2 litres or less (low fuel warning)
  • Revised riding position (vs. last generation Kodiak 450) for improved rider comfort & confidence
    • Revised handlebar design & bend
    • Longer seat design
    • Longer & wider floorboards
    • Increased knee & legroom (vs last generation Kodiak 450)
  • Quick remove, seat with large under seat storage pocket
    • Seat snaps into place - no levers to fuss with when removing seat
    • Seat is 110 mm (4.3 inches) longer than last generation seat
    • Storage pocket features multiple drain holes (storage pocket is not water proof)
  • Oversized floorboards
    • Significantly longer & wider than last generation Kodiak 450 for increased foot room
    • Excellent rider foot protection
    • Helps reduce mud & water splash
  • Compact digital LCD meter assembly with indicator & warning lights.
    • Functions include: speedometer, odometer, trip meter, fuel gauge, hour meter, service hour meter, drive mode indicator, transmission gear indicator & various warning lights
  • Aggressive angular body styling
    • Injection-molded fenders & centre body with special scuff guard finish in selected areas
    • Increased rider room Vs last generation Kodiak 450
  • High visibility lighting
    • 30/30 watt Krypton main headlights (fender mounted)
    • Handlebar mounted halogen 3rd headlight... turns with handlebars (EPS models only) & is only
    • activated when using high beam (3rd headlight is only available on EPS models)
    • rear tail light (brake & running lights)
  • Heavy duty steel front & rear racks with wrinkle finish paint for durability
    • Front rack max load: 40 kg (88 lbs.)
    • Rear rack max load: 80 kg (176 lbs.)
  • Rugged, cast "tongue-style" trailer hitch mount (ball not included)
    • Towing capacity: 600 kg (1,322 lbs.)
  • Rugged front bumper with wrinkle finish paint for durability
  • 12 volt DC outlet
    • Conveniently located on centre body area just ahead of handlebars
    • 10 amp / 120 watt, 12 volt DC outlet for work light, GPS, cell phone, etc.
  • Integrated winch wiring allows for easy installation of accessory winch
  • Low maintenance, sealed battery
  • YDT (Yamaha Diagnostic Tool) easy access, under seat coupler
    • Yamaha's exclusive money & time saving diagnostic tool
