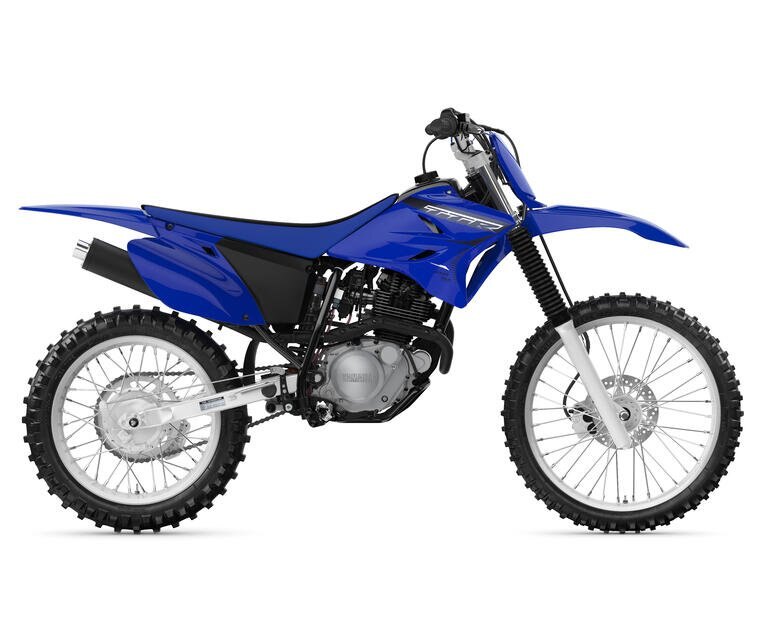

Riders of all skill levels will have a blast riding the easy-to-use, easy-to-start and easy-to-maintain TT-R230! The low seat height and smooth, torquey power are perfect for beginners and more experienced riders alike.
Peppy, air-cooled, 223 cc, SOHC, 2-valve, 4-stroke powerplant. The TT-R 230 is well suited for the advancing intermediate or less experienced full size rider. The TT-R 230 has the ability to tackle the toughest terrain.
Convenient, no-hassle electric starting.
Proven, 2-valve cylinder head design
Easy to adjust traditional rocker arms
150 hour valve adjustment intervals
Automatic cam chain tensioner.
reduces maintenance & mechanical engine noise
Teikei Y26P carburetor
crisp throttle response & good fuel economy
carb mounted choke
carb features "electroless" nickel plating on the valve seat & a stainless steel needle valve screw to offset the effects of E10 fuel (10% ethanol fuel).
Easy access oil filter & oil drain plug.
CDI (capacitor discharge ignition) system.
maintenance-free, delivers a strong spark for fast starts & solid engine performance at all rpms
WR-style washable foam air filter.
Smooth shifting 6-speed transmission with manual clutch.
optimized gear ratios for maximum off road fun and versatility
Lightweight, upswept exhaust system.
cleanable screen-type spark arrestor
heat shields in key areas to protect rider
Diamond-type steel frame features a compact, 1,385 mm (54.5") wheelbase to ensure superb manoeuvrability and responsive handling.
Rugged box-section steel swingarm features easy-to-use eccentric chain adjusters.
36 mm leading axle front fork offers 240 mm (9.5") of wheel travel
confidence-inspiring control over rough terrain
Durable fork boots ensure excellent fork seal and stanchion tube protection.
Monocross link single shock rear suspension offers 220 mm (8.7") of wheel travel.
adjustable spring preload (threaded type, 12 mm of adjustability) allows the rider to tailor suspension to rider weight and terrain.
smooth, progressive suspension performance.
Front 220 mm disc with twin piston caliper ensures fast, fade-free stopping power.
Rear drum brake with easy-to-use wing nut adjuster.
21" front and 18" rear aluminum rims & knobby tires.
lower unsprung weight for great suspension and handling performance
knobby tires provide excellent traction in the dirt.
Low 870 mm (34.3") seat height.
helps inspire rider confidence
295 mm (11.6") of ground clearance.
serious ground clearance to tackle the tough terrain
8-litre plastic fuel tank.
off/on/reserve fuel petcock for peace of mind
1.8 litre reserve capacity
Aggressive styling highlights Yamaha's championship-winning YZ racing heritage.
rugged plastic body components resist damage in the event of a tip over
